Unshielded version with print connections
* Wideband version
* Change from unbalanced to balanced and vice versa
* Galvanic isolation to avoid/eliminate hum loops
* Various level adjustment possibilities when windings are arranged accordingly
When installing unshielded transformers into units with interference fields (e.g. power transformers), attention has to be paid to respective shielding measures.
General Technical data
Frequency range: 15-30,000Hz

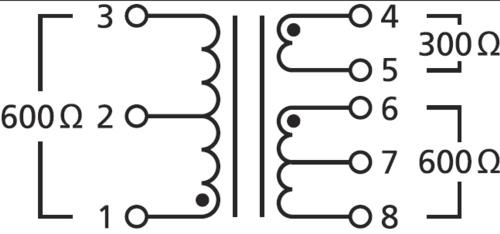

Transformation ratio: 1:1/2:1
Input impedance: 600 Ω
Output impedance: 600 Ω / 300 Ω
Optimum source imped.: 50-600 Ω
Optimum load imped.: 5 KΩ
Max. input voltage (1% THD/40Hz): 5V
Dimensions: 25x19x19.5mm
